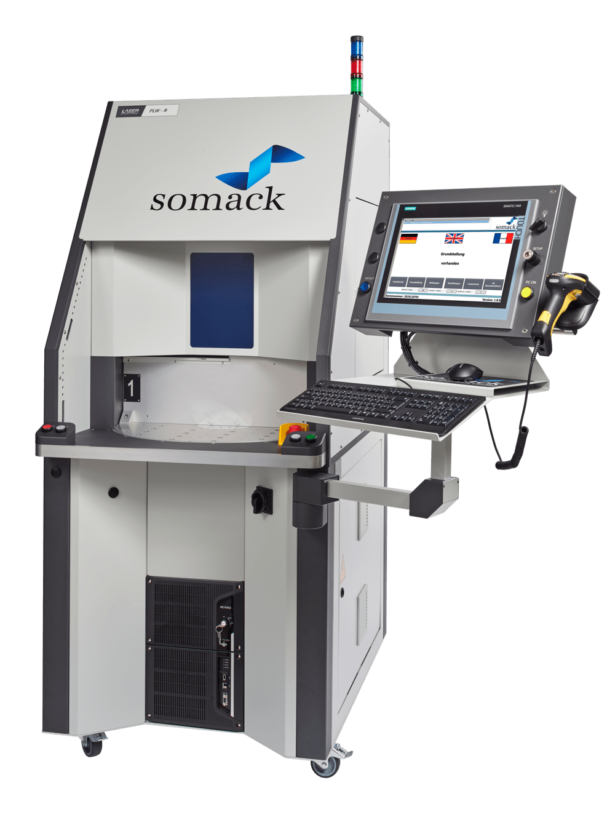

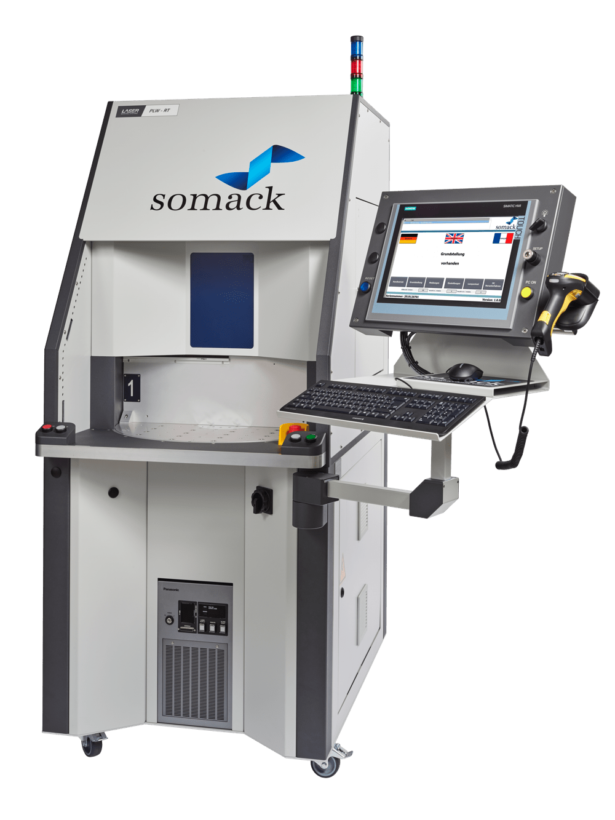

PLW-R laser cell

The PLW-R is perfectly suited to mark large unit numbers in very little time. The rotary indexing table is loaded at one side while your work piece is simultaneously marked in the opposite side. The table is turned by servo motor and can be loaded again. A touch panel enables a comfortable operation of the system.

Our services

Your benefits at a glance
  • Maximal reduction of set-up times
  • Maximal reduction of cycle times
  • Efficient space utilisation
  • Highly flexible
  • Simple connection of test devices or sensors through cable bushings in the rotary table
  • Simultaneous marking and placement
  • Integrated extraction
  • Integrated industrial PC
Technical data
  • Laser protection class 1
  • Mobile laser protection cabin
    • Exterior housing dimensions: 800mm x 1050mm x 1800mm
  • Servo-driven axes:
    • X-axis: 500mm (76.92mm/s)
    • Z-axis: 350mm (47.62mm/s)
  • Servo-driven rotary indexing table, Ø 650 mm
  • Rotary feedthrough for electrics or pneumatics in the rotary table
  • Internal extraction system
  • Touch PC with Windows software
  • interface to external S7 controller
  • Laser protection window 280mm x 200mm
